Button Machine
JACK JK-T781G
Achieve superior buttonholing efficiency and precision across diverse fabrics with this advanced electronic lockstitch machine. Engineered with integrated mechatronics and servo motor technology, it delivers high-quality stitches while optimizing production for both woven and high-elastic knitting materials. This machine significantly reduces labor intensity and operational costs for garment factories.
22-4 mm (Length-Width)
Button Hole Size
DPx5 #11-#14
Needle Type
1/4" - 1/4"
Side Cutter Width
Key Features & Benefits
- 01Boost Productivity — Integrated mechatronics design ensures low vibration, quiet operation, and high-efficiency production.
- 02Optimize Workflow — Automatic presser foot lifting and thread trimming reduce labor intensity and improve operational speed.
- 03Minimize Thread Waste — Short thread remaining system leaves less than 3mm, eliminating manual trimming and reducing costs.
- 04Ensure Uninterrupted Production — Bobbin thread detection automatically stops the machine when thread is low, preventing missed stitches.
- 05Simplify Operation — Intuitive dot panel allows easy pattern and parameter adjustments without needing a manual.
- 06Versatile Application — Specialized presser foot and needle plate accommodate high-elastic knitting materials with beautiful stitches and reduced breakage.
Technical Specifications
Button Hole Size
22-4 mm (Length-Width)
Needle Type
DPx5 #11-#14
Side Cutter Width
1/4" - 1/4"
Parallel Interspace
2 mm
Automatic Thread Trimmer
Yes
Auto Presser Foot Lifter
Yes
Presser Foot Lifter Height
12 mm
Max. Speed
3600 S.p.m
Weight
45/56 Kg (Head/Total)
Dimensions (LxWxH)
700x350x495 mm

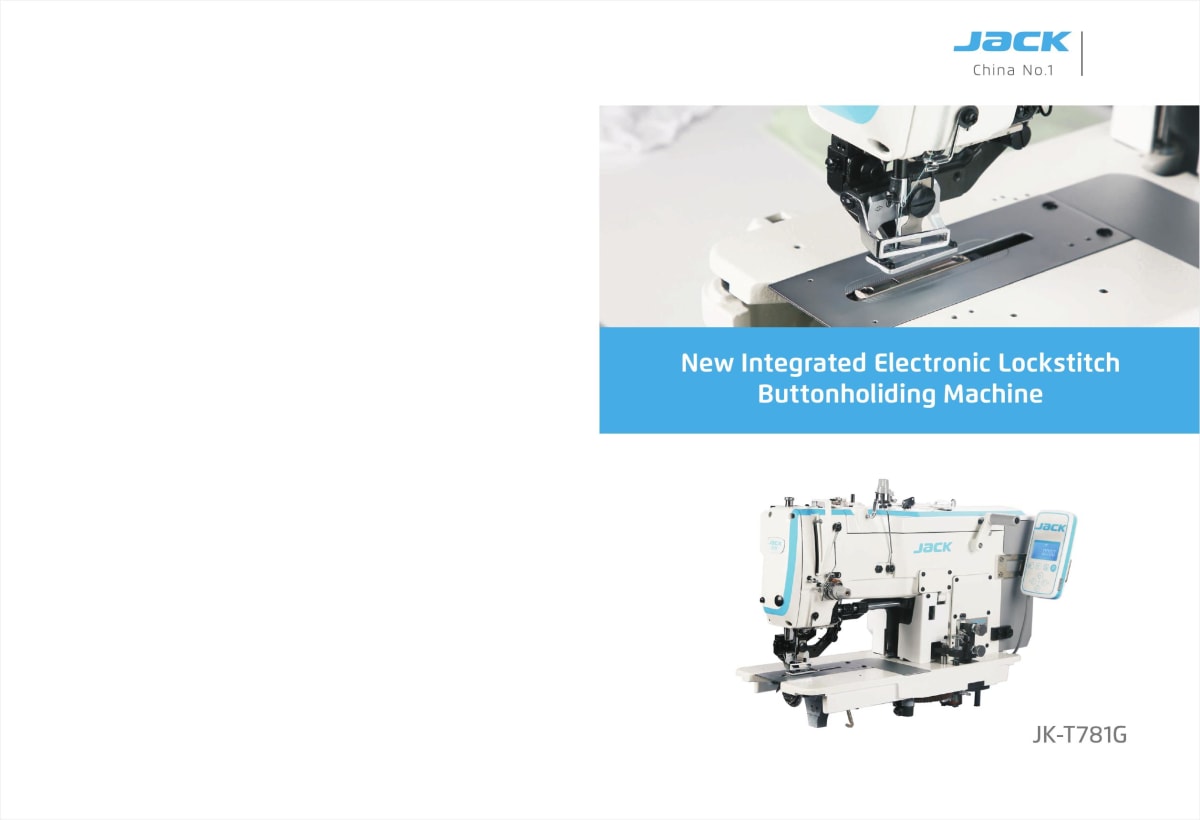

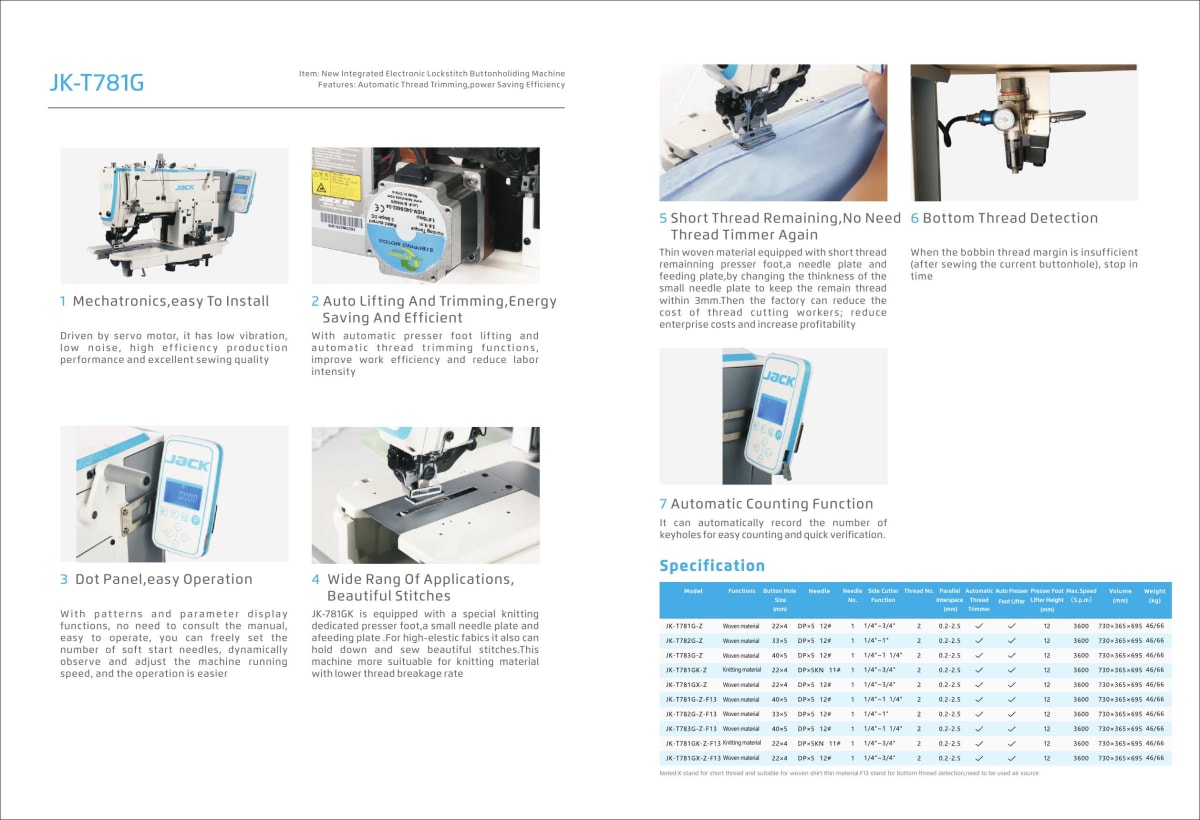

JACK Industrial
Official Datasheet
