Lockstitch Machine
JACK F5
Achieve superior stitching quality and significant operational savings with this advanced direct-drive lockstitch machine. Engineered for general garment manufacturing, it delivers consistent performance across various fabric types while minimizing energy consumption. This model is ideal for factories seeking reliable, efficient, and cost-effective sewing solutions.
5 mm
Max Stitch Length
3000 rpm
Max Sewing Speed
6/13 mm
Presser Foot Lift
Key Features & Benefits
- 01Maximize Efficiency — Direct drive motor integration ensures power saving and precise control.
- 02Ensure Stability — Enhanced capacitance provides reliable operation even with fluctuating voltage (100V-295V).
- 03Reduce Costs — Significant power savings compared to traditional clutch motors, yielding substantial daily savings.
- 04Simplify Operation — Intuitive controls allow for easy speed adjustment and one-key reset.
- 05Guaranteed Durability — Backed by a comprehensive five-year warranty for long-term peace of mind.
Technical Specifications
Max Stitch Length
5 mm
Max Sewing Speed
3000 rpm
Presser Foot Lift
6/13 mm
Needle Type
DB×1
Needle Size Range
11-18#
Machine Head Dimensions (L×W×H)
635×245×550 mm
Net/Gross Weight
31.5/38.2 kg
Operating Voltage Range (220V)
100V~295V
Working Power Consumption
238.4 W
Warranty
5 Years
JACK Industrial

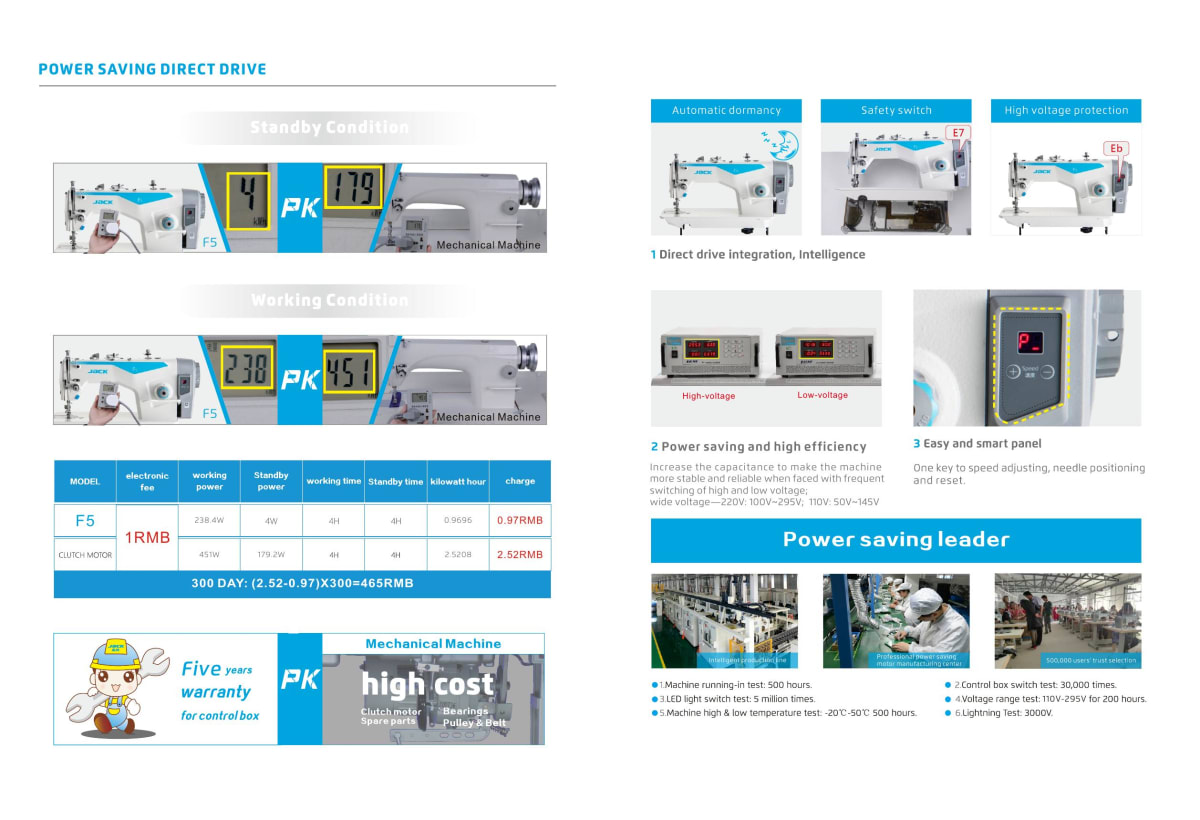

Official Datasheet
Ready to order the JACK F5?
Local stock, installation & after-sales support across Rwanda and East Africa.
